Call Log Details - CometChat Docs

Overview

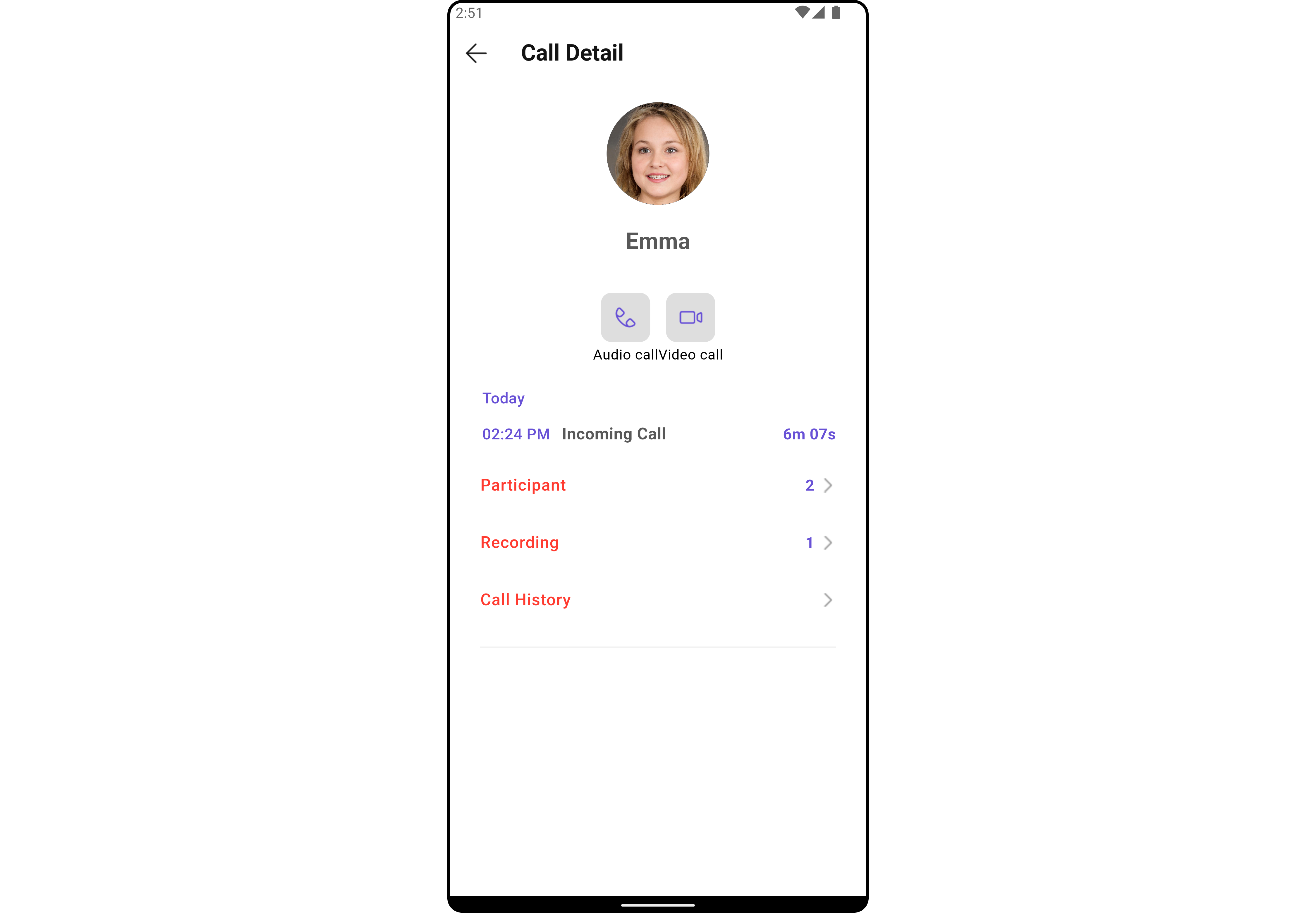

The CometChatCallLogDetails is a Widget that displays all the information related to a call. This widget displays information like user/group information, participants of the call, recordings of the call (if available) & history of all the previous calls. Also, it has buttons to start a new call.

Android
iOS

You can launch CometChatCallLogDetails directly using Navigator.push, or you can define it as a widget within the build method of your State class.

1. Using Navigator to Launch `CometChatCallLogDetails`

Dart

Navigator.push(context, MaterialPageRoute(builder: (context) => CometChatCallLogDetails(callLog: callLogObject))); // Call Log object is required to launch the CometChatCallLogDetails widget.

2. Embedding `CometChatCallLogDetails` as a Widget in the build Method

Dart

import 'package:cometchat_calls_uikit/cometchat_calls_uikit.dart';
import 'package:flutter/material.dart';

class CallLogDetailsExample extends StatefulWidget {
  const CallLogDetailsExample({super.key});

  @override
  State<CallLogDetailsExample> createState() => _CallLogDetailsExampleState();
}

class _CallLogDetailsExampleState extends State<CallLogDetailsExample> {

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SafeArea(
        child: Center(
          child: CometChatCallLogDetails(
            callLog: callLogObject
          ) // Call Log object is required to launch the CometChatCallLogDetails widget.
        )
      ),
    );
  }
}

Actions

Actions dictate how a widget functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the widget to fit your specific needs.

1. OnError

You can customize this behavior by using the provided code snippet to override the OnError and improve error handling.

Dart

CometChatCallLogDetails(
  callLog: callLogObject,
  onError: (e) {
    // TODO("Not yet implemented")
  },
)

2. onBack

You can customize this behavior by using the provided code snippet to override the onBack and improve error handling.

Dart

CometChatCallLogDetails(
  callLog: callLogObject,
  onBack: () {
    // TODO("Not yet implemented")
  },
)

Filters

Filters allow you to customize the data displayed in a list within a Widget. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK. The CometChatCallLogDetails widget does not have any exposed filters.

Events

Events are emitted by a Widget. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed. The CometChatCallLogDetails widget does not have any exposed events.

Customization

To fit your app’s design requirements, you can customize the appearance of the conversation widget. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the widget in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the widget.

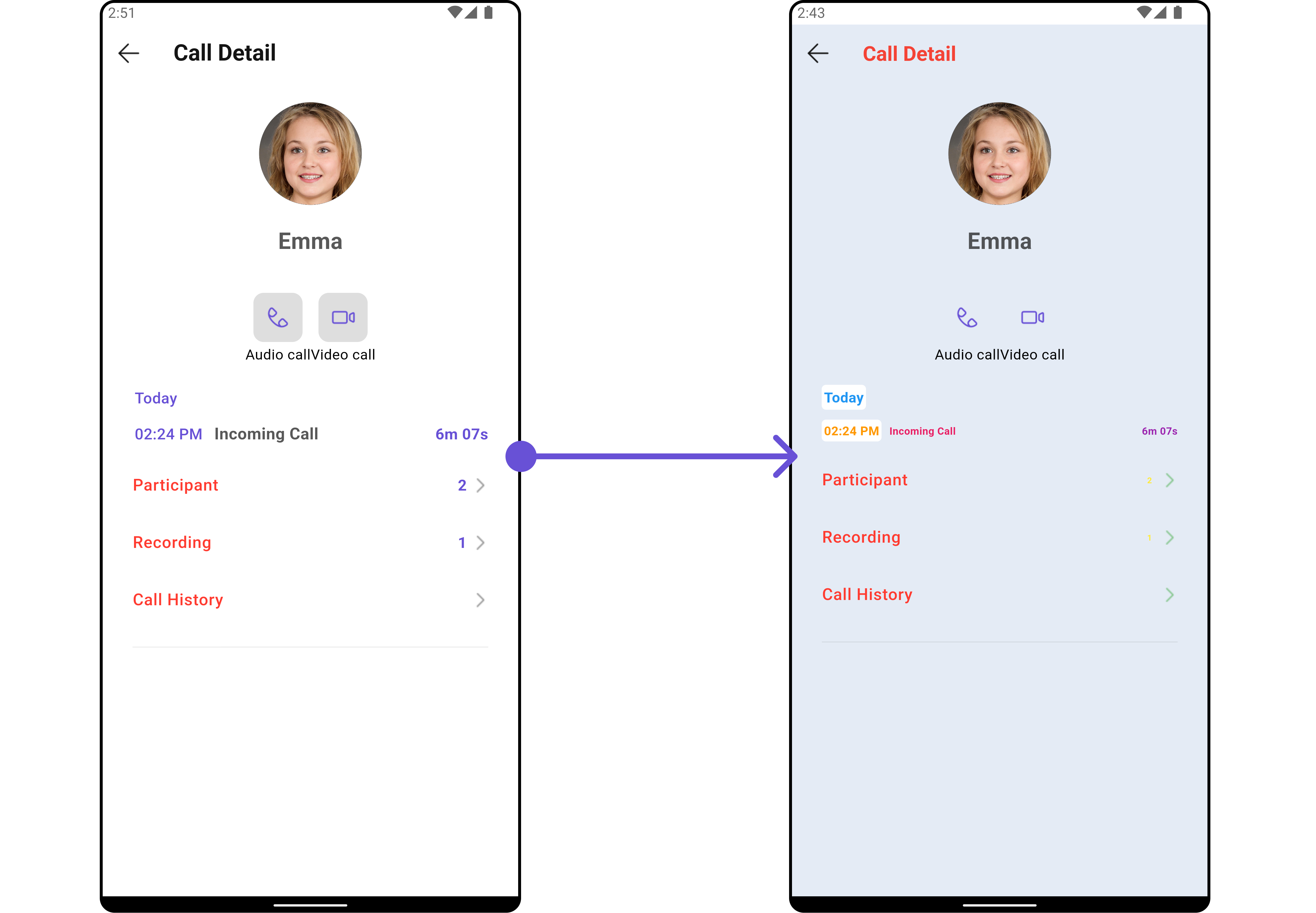

1. CallLogDetails Style

You can customize the appearance of the CometChatCallLogDetails Widget by applying the CallLogDetailsStyle to it using the following code snippet.

Dart

CometChatCallLogDetails(
  callLog: callLogObject,
  detailStyle: const CallLogDetailsStyle(
    background: Color(0xFFE4EBF5),
    titleStyle: TextStyle(
      color: Colors.red,
      fontSize: 20,
      fontWeight: FontWeight.bold,
    ),
    separatorDateStyle: TextStyle(
      color: Colors.blue,
      fontSize: 14,
      fontWeight: FontWeight.bold,
    ),
    timeStyle: TextStyle(
      color: Colors.orange,
      fontSize: 12,
      fontWeight: FontWeight.bold,
    ),
    durationStyle: TextStyle(
      color: Colors.purple,
      fontSize: 10,
      fontWeight: FontWeight.bold,
    ),
    countStyle: TextStyle(
      color: Colors.yellow,
      fontSize: 8,
      fontWeight: FontWeight.bold,
    ),
    callStatusStyle: TextStyle(
      color: Colors.pink,
      fontSize: 10,
      fontWeight: FontWeight.bold,
    ),
    arrowIconTint: Colors.green,
  )
)

Android
iOS

List of properties exposed by CallLogDetailsStyle

Property	Description	Code
Arrow Icon Tint	Sets the color for the arrow icon.	`arrowIconTint: Color?`
Background	Sets the background color.	`background: Color?`
Back Icon Tint	Sets the color for the back icon.	`backIconTint: Color?`
Border	Sets the border.	`border: BoxBorder?`
Call Status Style	Sets the style for the call status text.	`callStatusStyle: TextStyle?`
Count Style	Sets the style for the count text.	`countStyle: TextStyle?`
Duration Style	Sets the style for the duration text.	`durationStyle: TextStyle?`
Gradient	Sets the background gradient.	`gradient: Gradient?`
Height	Sets the height of the widget.	`height: double?`
Name Style	Sets the style for the name text.	`nameStyle: TextStyle?`
Separator Date Style	Sets the style for the separator date text.	`separatorDateStyle: TextStyle?`
Time Style	Sets the style for the time text.	`timeStyle: TextStyle?`
Title Style	Sets the style for the title text.	`titleStyle: TextStyle?`
Video Call Icon Tint	Sets the color for the video call icon.	`videoCallIconTint: Color?`
Voice Call Icon Tint	Sets the color for the voice call icon.	`voiceCallIconTint: Color?`
Width	Sets the width of the widget.	`width: double?`

2. Avatar Styles

To apply customized styles to the Avatar widget in the CometChatCallLogDetails Widget, you can use the following code snippet. For further insights on Avatar Styles refer

Dart

CometChatCallLogDetails(
  callLog: callLogObject,
  avatarStyle: AvatarStyle(
      border: Border.all(width: 5),
      borderRadius: 20,
      background: Colors.red
  ),
)

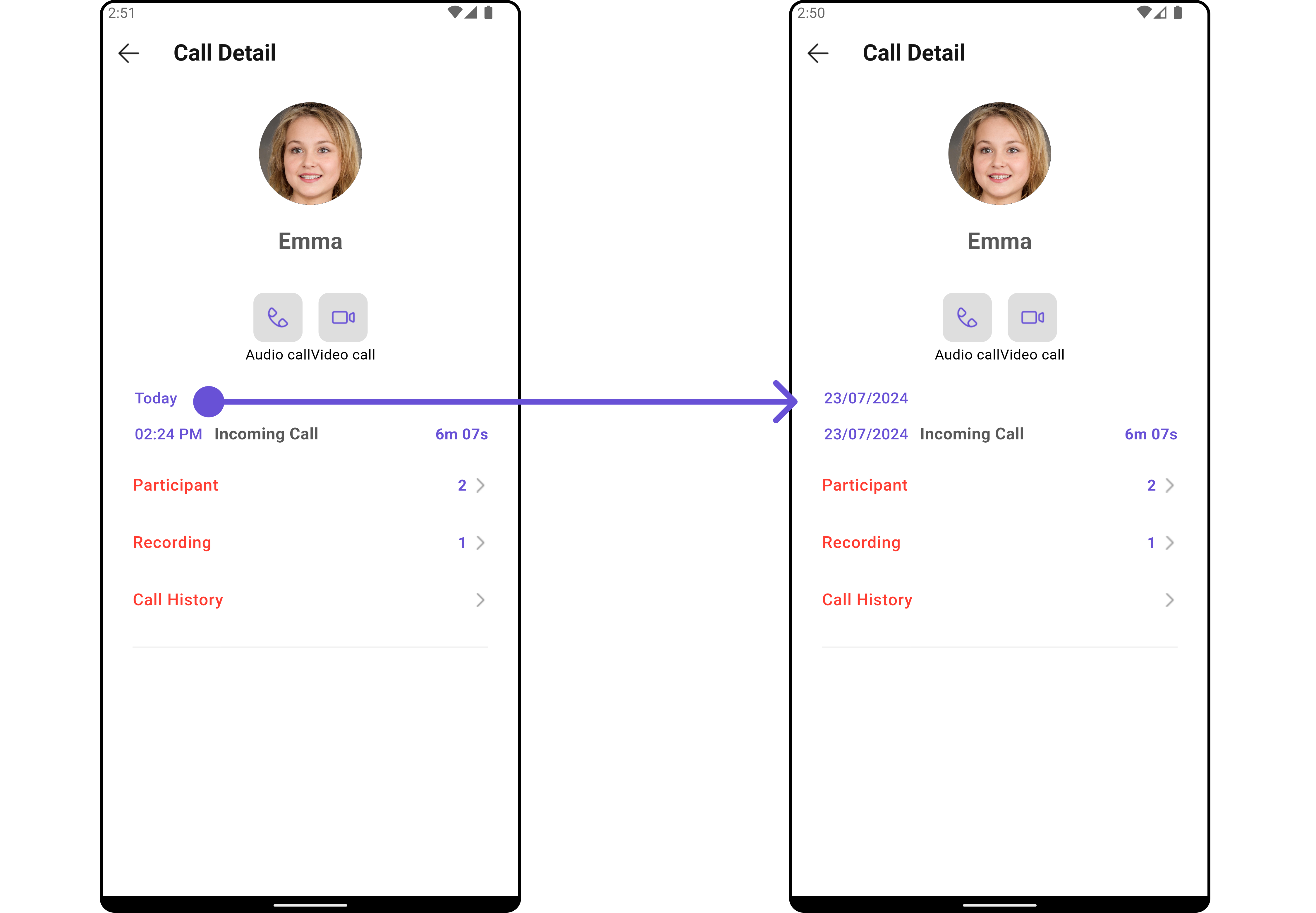

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the widget. With these, you can change text, set custom icons, and toggle the visibility of UI elements. Example Here is the example for reference:

Dart

CometChatCallLogDetails(
  callLog: callLogObject,
  datePattern: DateFormat("dd/MM/yyyy").format(DateTime.fromMillisecondsSinceEpoch(callLogObject!.startedAt!*1000)),
  separatorDatePattern: DateFormat("dd/MM/yyyy").format(DateTime.fromMillisecondsSinceEpoch(callLogObject!.endedAt!*1000)),
)

Android
iOS

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
Arrow Icon	Sets the arrow icon.	`arrowIcon: Widget?`
Back Button	Sets the back button widget.	`backButton: Widget?`
Date Pattern	Sets the date pattern.	`datePattern: String?`
Separator Date Pattern	Sets the separator date pattern.	`separatorDatePattern: String?`
Show Back Button	Determines whether to show the back button.	`showBackButton: bool`
Theme	Sets the theme.	`theme: ThemeData?`
Title	Sets the title.	`title: String?`

Advanced

For advanced-level customization, you can set custom widgets to the widget. This lets you tailor each aspect of the widget to fit your exact needs and application aesthetics. You can create and define your widgets, layouts, and UI elements and then incorporate those into the widget.

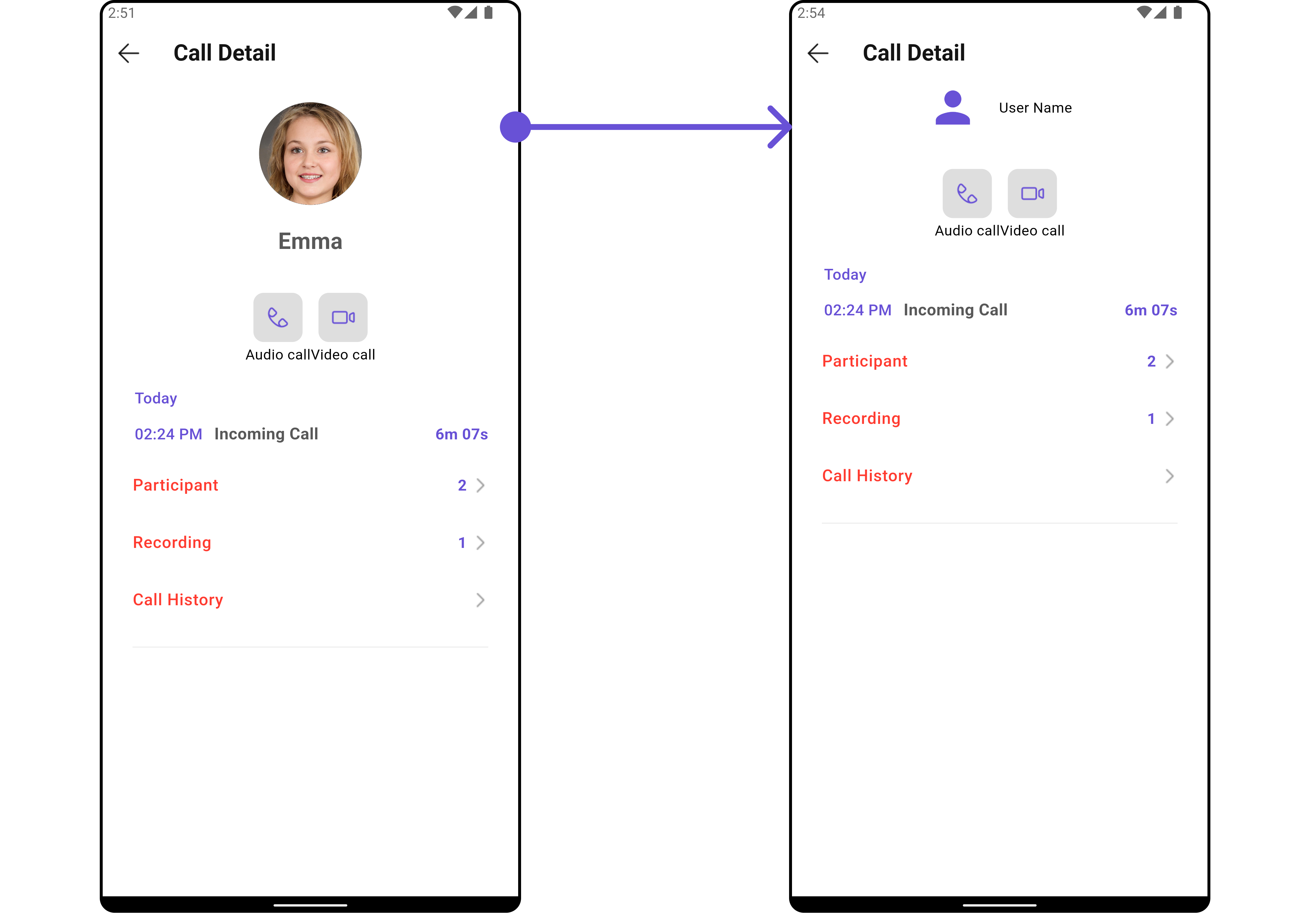

CustomProfile View

You can customize your Profile widget to meet your specific preferences and needs.

Dart

CometChatCallLogDetails(
  callLog: callLogObject,
  customProfileView: const Row(
    crossAxisAlignment: CrossAxisAlignment.center,
    mainAxisAlignment: MainAxisAlignment.center,
    children: [
      Icon(Icons.person, color: Color(0xFF6851D6), size: 50,),
      SizedBox(width: 20,),
      Text("User Name"),
    ],
  ),
)

Android
iOS

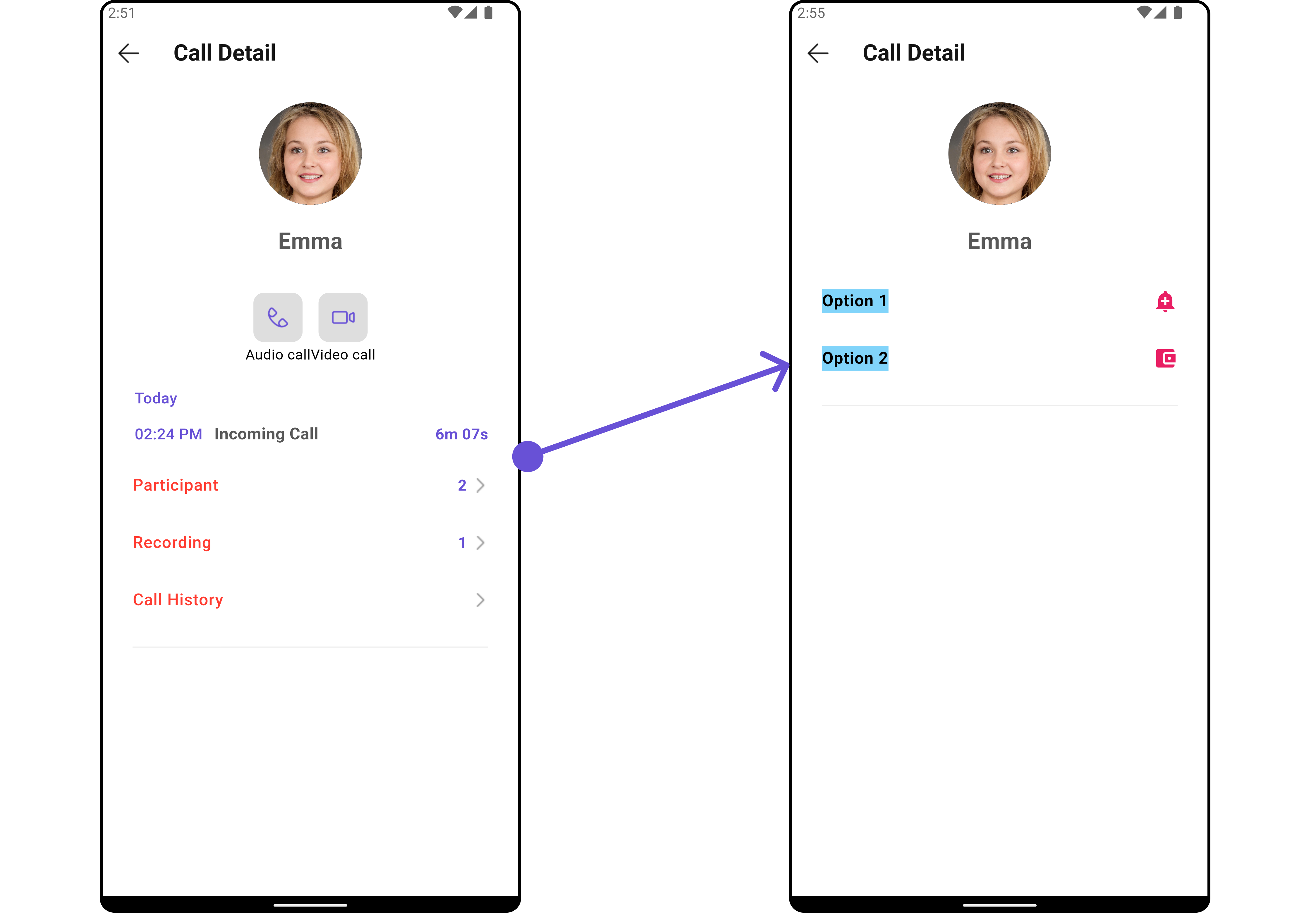

Template and Options

1. Options

The CometChatCallLogDetailsOption is the class providing structure for options to be shown.

Dart

Option

CometChatCallLogDetailsOption option1 = CometChatCallLogDetailsOption(
    id: "templateId1",
    onClick: (callLog, section, state) {},
    tail: const Icon(
    Icons.add_alert,
    color: Colors.pink,
    ),
    title: "Option 1",
    titleStyle: TextStyle(
        backgroundColor: Colors.lightBlue.shade200,
        fontWeight: FontWeight.bold
    ),
    icon: AssetConstants.heart,
    packageName: UIConstants.packageName
); // Created custom option

List of Functionality used to customize the appearance of the CometChatCallLogDetailsOption widget.

Property	Description	Code
Custom View	Sets a custom view widget.	`customView: Widget?`
On Click	Callback function to be executed on click.	`onClick: void Function()?`
Tail	Sets the tail widget.	`tail: Widget?`
ID	Unique identifier for the option.	`id: String`
Height	Sets the height of the option.	`height: double?`
Title	Sets the title text.	`title: String?`
Icon	Sets the icon URL.	`icon: String?`
Package Name	Sets the package name for the icon.	`packageName: String?`
Title Style	Sets the text style for the title.	`titleStyle: TextStyle?`

2. Template

The CometChatCallLogDetailsTemplate defines the structure for sections of options available in the CometChatCallLogDetails

Dart

CometChatCallLogDetailsTemplate template = CometChatCallLogDetailsTemplate(
    id: "templateId2",
    hideItemSeparator: false,
    hideSectionSeparator: false,
    itemSeparatorColor: Colors.deepOrange,
    sectionSeparatorColor: Colors.pink,
    title: "Custom Template",
    titleStyle: const TextStyle(
        backgroundColor: Colors.yellow,
        fontWeight: FontWeight.bold
    ),
    options: (callLog, context, theme) => [option1, option2] // Added the options here
); // Created Template

List of Functionality exposed by CometChatCallLogDetailsTemplate

Property	Description	Code
ID	Unique identifier for the template.	`id: String`
Options	List of options available in the template.	`options: List<CometChatCallLogDetailsOption>?`
Title	Title text for the template.	`title: String?`
Title Style	Text style for the title.	`titleStyle: TextStyle?`
Section Separator Color	Color for the section separator.	`sectionSeparatorColor: Color?`
Hide Section Separator	Flag to hide the section separator.	`hideSectionSeparator: bool?`
Item Separator Color	Color for the item separator.	`itemSeparatorColor: Color?`
Hide Item Separator	Flag to hide the item separator.	`hideItemSeparator: bool?`

Example Here is the complete example for reference:

Dart

CometChatCallLogDetails(
  callLog: callLogObject,
  data: (callLog) {
    CometChatCallLogDetailsOption option1 = CometChatCallLogDetailsOption(
        id: "templateId1",
        onClick: (callLog, section, state) {},
        tail: const Icon(
          Icons.add_alert,
          color: Colors.pink,
        ),
        title: "Option 1",
        titleStyle: TextStyle(
            backgroundColor: Colors.lightBlue.shade200,
            fontWeight: FontWeight.bold
        ),
        icon: AssetConstants.heart,
        packageName: UIConstants.packageName
    ); // Created custom option 1

    CometChatCallLogDetailsOption option2 = CometChatCallLogDetailsOption(
        id: "OPTION_ID_2",
        onClick: (callLog, section, state) {},
        tail: const Icon(
          Icons.account_balance_wallet,
          color: Colors.pink,
        ),
        title: "Option 2",
        titleStyle: TextStyle(
            backgroundColor: Colors.lightBlue.shade200,
            fontWeight: FontWeight.bold
        ),
        icon: AssetConstants.heart,
        packageName: UIConstants.packageName
    ); // Created custom option 2

    CometChatCallLogDetailsTemplate template = CometChatCallLogDetailsTemplate(
        id: "templateId2",
        hideItemSeparator: false,
        hideSectionSeparator: false,
        itemSeparatorColor: Colors.deepOrange,
        sectionSeparatorColor: Colors.pink,
        title: "Custom Template",
        titleStyle: const TextStyle(
            backgroundColor: Colors.yellow,
            fontWeight: FontWeight.bold
        ),
        options: (callLog, context, theme) => [option1, option2] // Added the options here
    ); // Created Template

    return [template]; // Return the template as a list
  },
)

Android
iOS

Configurations

Configurations offer the ability to customize the properties of each widget within a Composite Widget. CometChatCallLogDetails has Call Log History, Call Log Recordings and Call Log Participants widget. Hence, each of these widgets will have its individual Configuration.

Configurations expose properties that are available in its individual widgets.

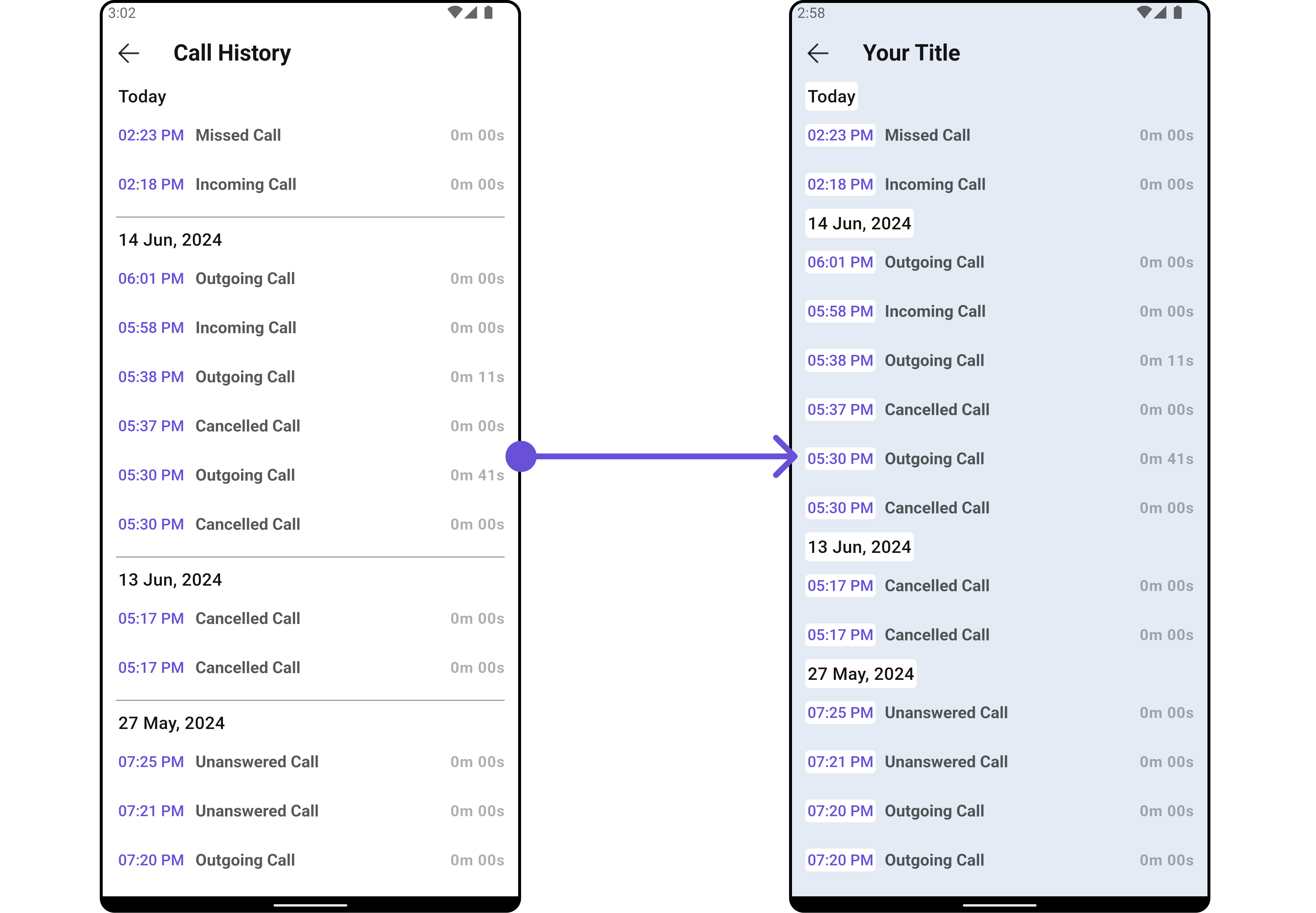

Call Log History

You can customize the properties of the Call Log History widget by making use of the callLogHistoryConfiguration. You can accomplish this by employing the callLogHistoryConfiguration props as demonstrated below:

Dart

CometChatCallLogDetails(
    callLog: callLogObject,
    callLogHistoryConfiguration: CallLogHistoryConfiguration(
        title: "Your Title",
        callLogHistoryStyle: CallLogHistoryStyle(
          background: Color(0xFFE4EBF5),
        )
    )
)

Android
iOS

All exposed properties of CallLogHistoryConfiguration can be found under Call Log History. Properties marked with the 🛑 symbol are not accessible within the Configuration Object.

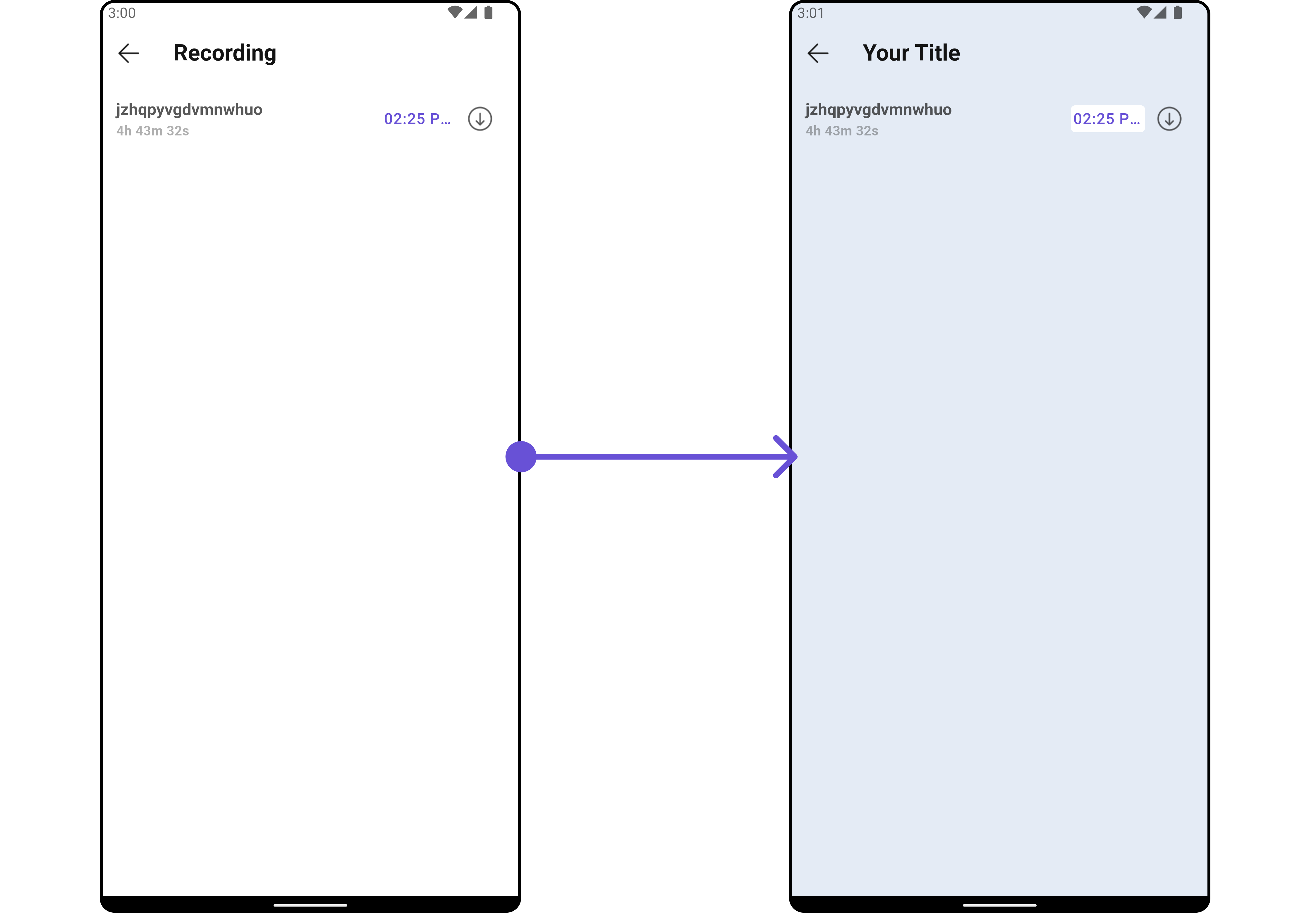

Call Log Recordings

You can customize the properties of the Call Log Recordings widget by making use of the callLogRecordingsConfiguration. You can accomplish this by employing the callLogRecordingsConfiguration props as demonstrated below:

Dart

CometChatCallLogDetails(
    callLog: callLogObject,
    recordingsConfiguration: CallLogRecordingsConfiguration(
        title: "Your Title",
        recordingsStyle: CallLogRecordingsStyle(
          background: Color(0xFFE4EBF5),
        )
    )
)

Android
iOS

All exposed properties of CallLogRecordingsConfiguration can be found under Call Log Recordings. Properties marked with the 🛑 symbol are not accessible within the Configuration Object.

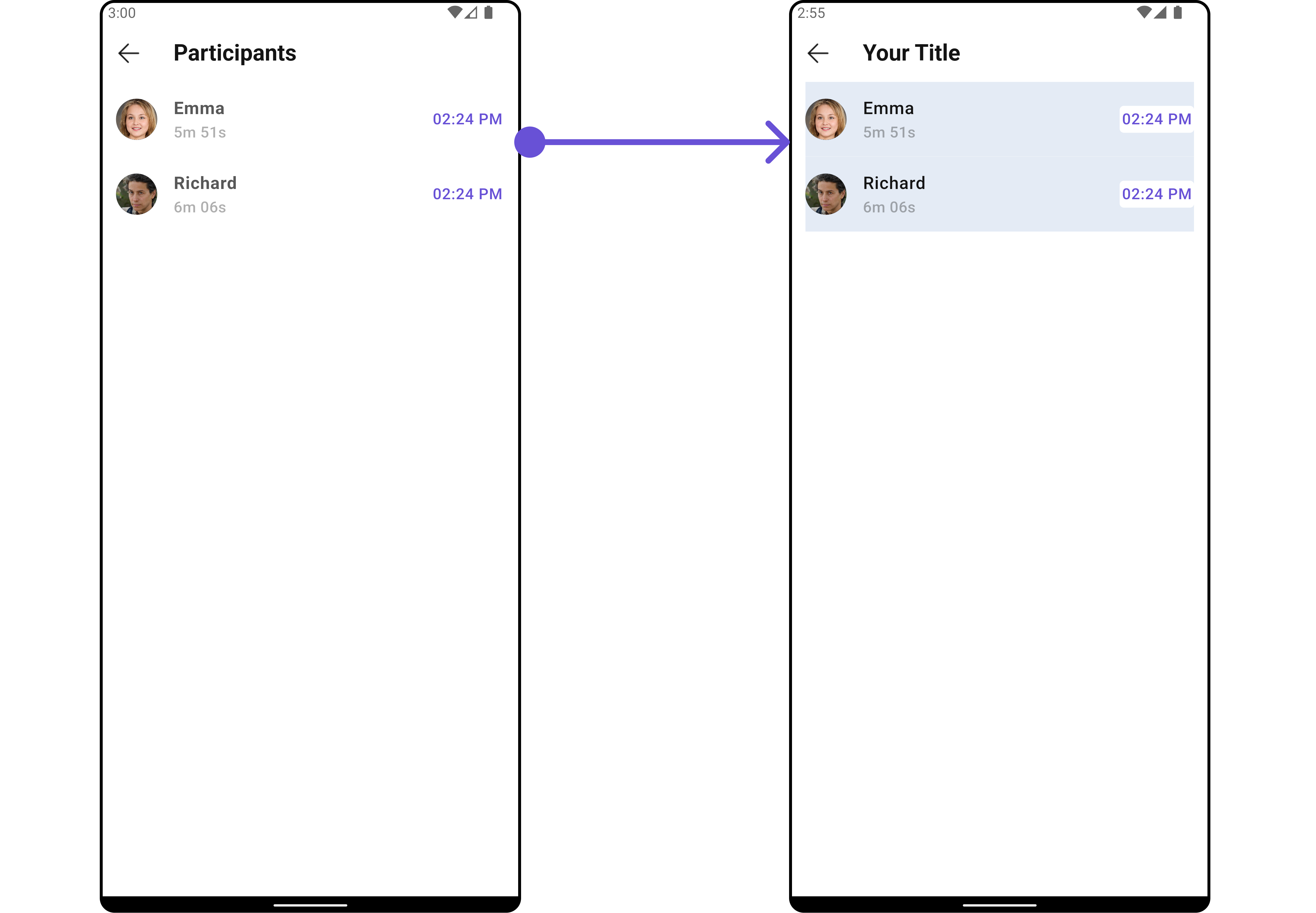

Call Log Participants

You can customize the properties of the Call Log Participants widget by making use of the callLogParticipantsConfiguration. You can accomplish this by employing the callLogParticipantsConfiguration props as demonstrated below:

Dart

CometChatCallLogDetails(
  callLog: callLogObject,
  participantsConfiguration: CallLogParticipantsConfiguration(
    title: "Your Title",
    listItemStyle: const ListItemStyle(
      background: Color(0xFFE4EBF5)
    )
  )
)

Android
iOS

All exposed properties of CallLogParticipantsConfiguration can be found under Call Log Participants. Properties marked with the 🛑 symbol are not accessible within the Configuration Object.
